MBX Planetary Mixer
Product Description

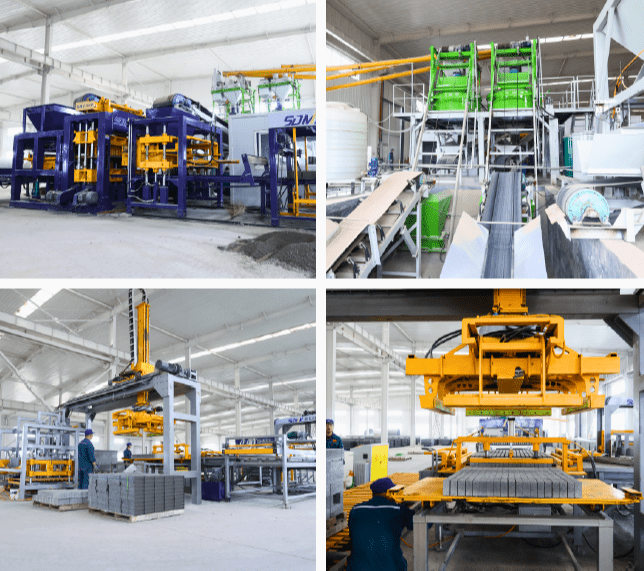

Planetary concrete mixers are preferred by many ready-mix concrete producers, particularly those producing precast concrete, concrete blocks, paving stones, briquettes, curbs, and more. They are particularly used for precast, fiber-reinforced, and paving stone concrete, where low or zero slump concrete is used. The SDMIX planetary concrete mixer range includes models with compacted concrete capacities of 0.5m³, 0.75m³, 1m³, 1.5m³, and 2m³.

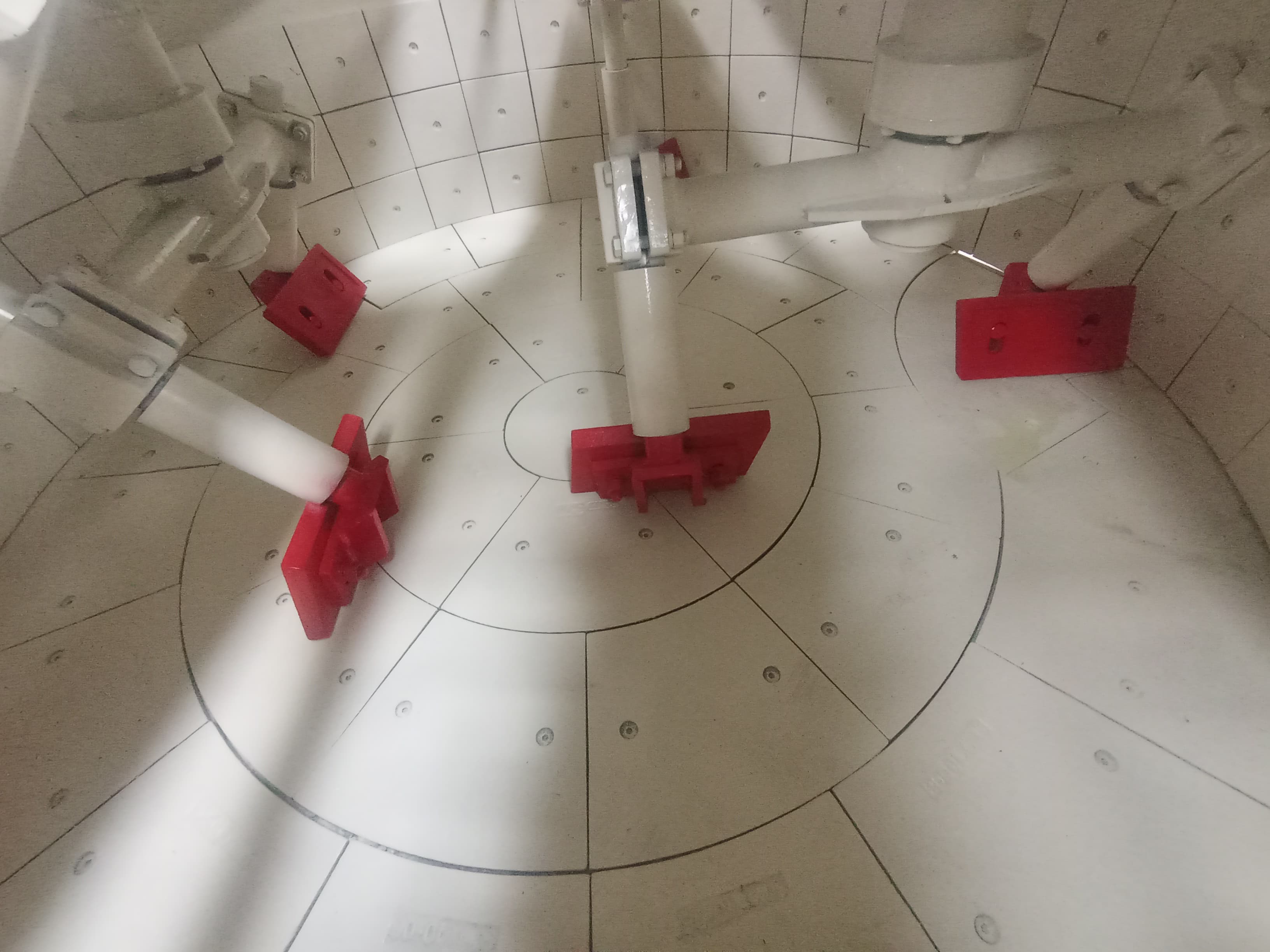

SDMIX brand MBX Model Planetary Concrete Mixers are the best in their class. The planetary mixer’s design features one or two mixing arms that rotate both around itself and around the mixer’s center point. This powerful mixing action is both fast and comprehensive.
Technical Features
|
Charging volume(L) Kuru Dolum |
750 |
1125 |
1500 |
2250 |
3000 |
|
Discharging volume(L) Sıkıştırılmış Beton Kapasite |
500 |
750 |
1000 |
1500 |
2000 |
|
Motor power(KW) Motor Gücü |
18.5 |
30 |
37 |
55 |
75 |
|
Working voltage(V) Voltaj |
380 |
380 |
380 |
380 |
380 |
|
Frequency(HZ) Frekans |
50 |
50 |
50 |
50 |
50 |
|
Qty. of mixing star Yıldız Sayısı |
1 |
1 |
2 |
2 |
3 |
|
Qty. of paddles Yıldız*Palet Sayısı |
1*2 |
1*2 |
2*2 |
2*2 |
3*2 |
|
Qty. of side scrapers Yan Sıyırıcı Sayısı |
1 |
1 |
2 |
2 |
2 |
|
Qty. of scrapers on the floor Taban Sıyırıcı Sayısı |
1 |
1 |
1 |
1 |
1 |
|
Qty. of side wearings Duvar Aşınmaz Sayısı |
60 |
64 |
108 |
120 |
132 |
|
Qty. of bottom wearings Taban Aşınmaz Sayısı |
39 |
33 |
38 |
59 |
87 |
|
Thickness of sidewall wearings Duvar Aşınmaz Kalınlığı |
8-10mm |
||||
|
Thickness of bottom wearings Taban Aşınmaz Kalınlığı |
15mm |
||||
|
Material and hardness of side and bottom wearings Duvar-Taban Aşınmazlar Materyal ve Sertlik Derecesi |
Cast iron with high chromium (26%) / Yüksek Kromlu Demir Döküm (%26) 550-630 Brinell |
||||
|
Mixer body material and thickness Mikser Gövde Materyal ve Kalınlık |
Q235A / 10mm |
||||
|
Mixing and Scraper arms Karıştırıcı ve Sıyırıcı Kol Materyal |
Alloy Steel Çelik Alaşım |
||||
|
Power of hydraulic unit (KW) Hidrolik Ünite Güç |
2.2 |
2.2 |
3 |
3 |
3 |
|
Mixer weight(kg) Toplam Ağırlık |
2000 |
3500 |
5500 |
6500 |
8500 |
